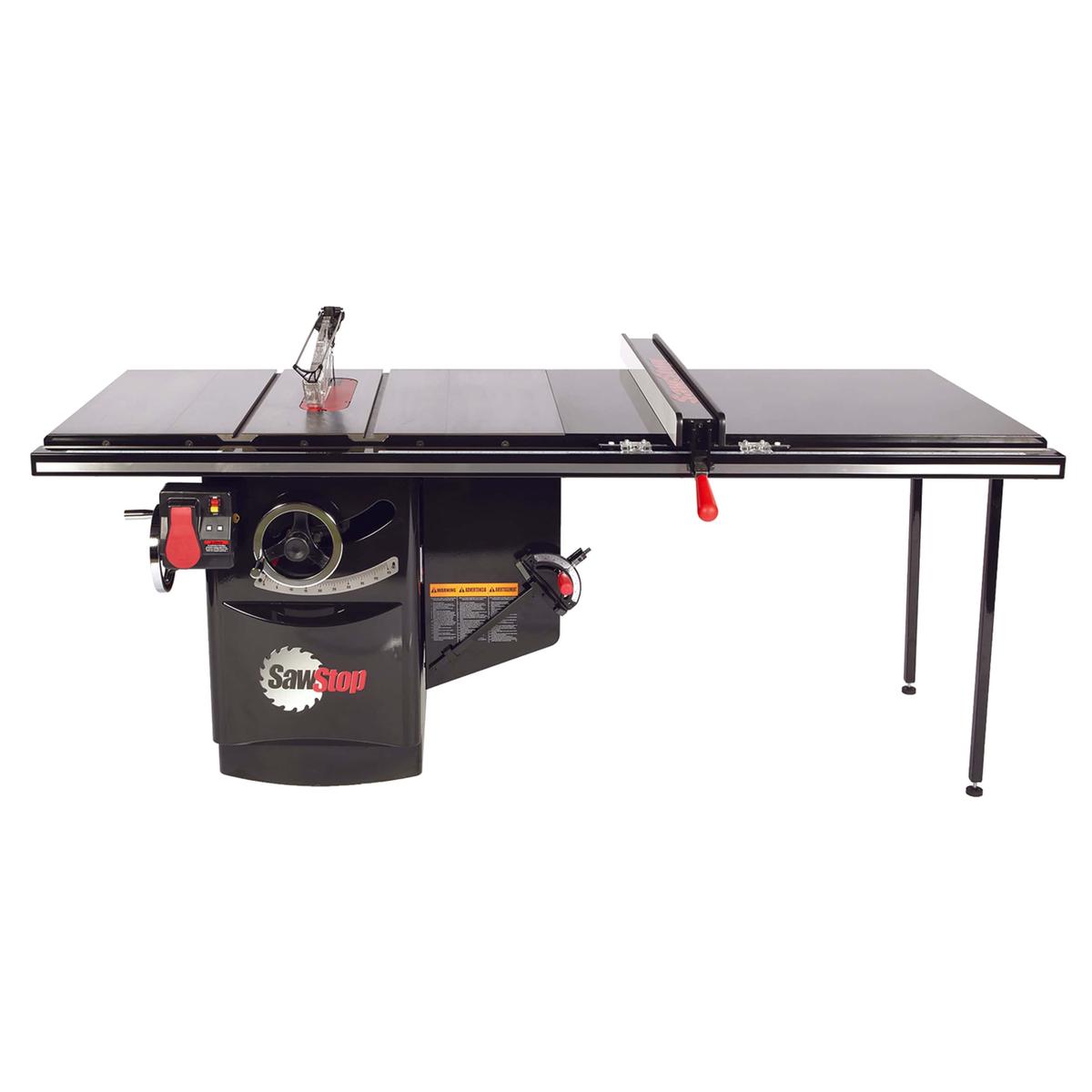

Industrial Cabinet Saw with 52 Industrial T-Glide Fence System – 5 HP – 1PH – 230V

Features:

• SawStops patented safety system
  Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
  Diagnostic system ensures the saw is ready to respond
• Dust-Collection Blade Guard
  52″ Industrial T-Glide Fence System
• 5 HP motor 1-phase, 230V 60 HZ

Specifications:

• Overall saw dimensions: 85-1/4″ wide x 36-1/2″ deep x 34″ high
• Cabinet footprint: 20″ x 25″
• Cast-iron table: 24″ w x 30″ d
• Cast-iron table size with extension wings: 44″ w x 30″ d
• Motor: 5 HP, 1-phase, 230V 60 HZ
• Weight: 685 lbs.
• Blade: 60-tooth, professional grade, 5/8″ arbor
• Blade diameter: 10″
• Blade tilt: left
• Blade kerf: 0.118″ (3mm)
• Blade plate thickness: 0.078″
• Max. depth of cut, blade at 0: 3-1/8″
• Max. depth of cut, blade at 45: 2-1/4″
• Max. rip, left of blade: 12-1/2″
• Dado diameter: 8″ (requires a separate brake cartridge and table insert)
• Dado max. width: 13/16″
• Arbor diameter at blade: 5/8″
• Table in front of blade (max. elevation): 11″
• Table behind blade (max. elevation): 9-3/4″
• Table flatness measured diagonally: 0.010″ maximum gap
• Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep
• Dust-collection port diameter: 4″
• Riving knife/splitter thickness: 0.090″ (2.3mm)
• Insert: zero clearance, phenolic core, melamine surfaces
• Belts: 2 V-ribbed belts

What’s Included:

• (1) SawStop Industrial Cabinet Saw with 52″ Industrial T-Glide Fence System – 5 HP – 1PH – 230V
