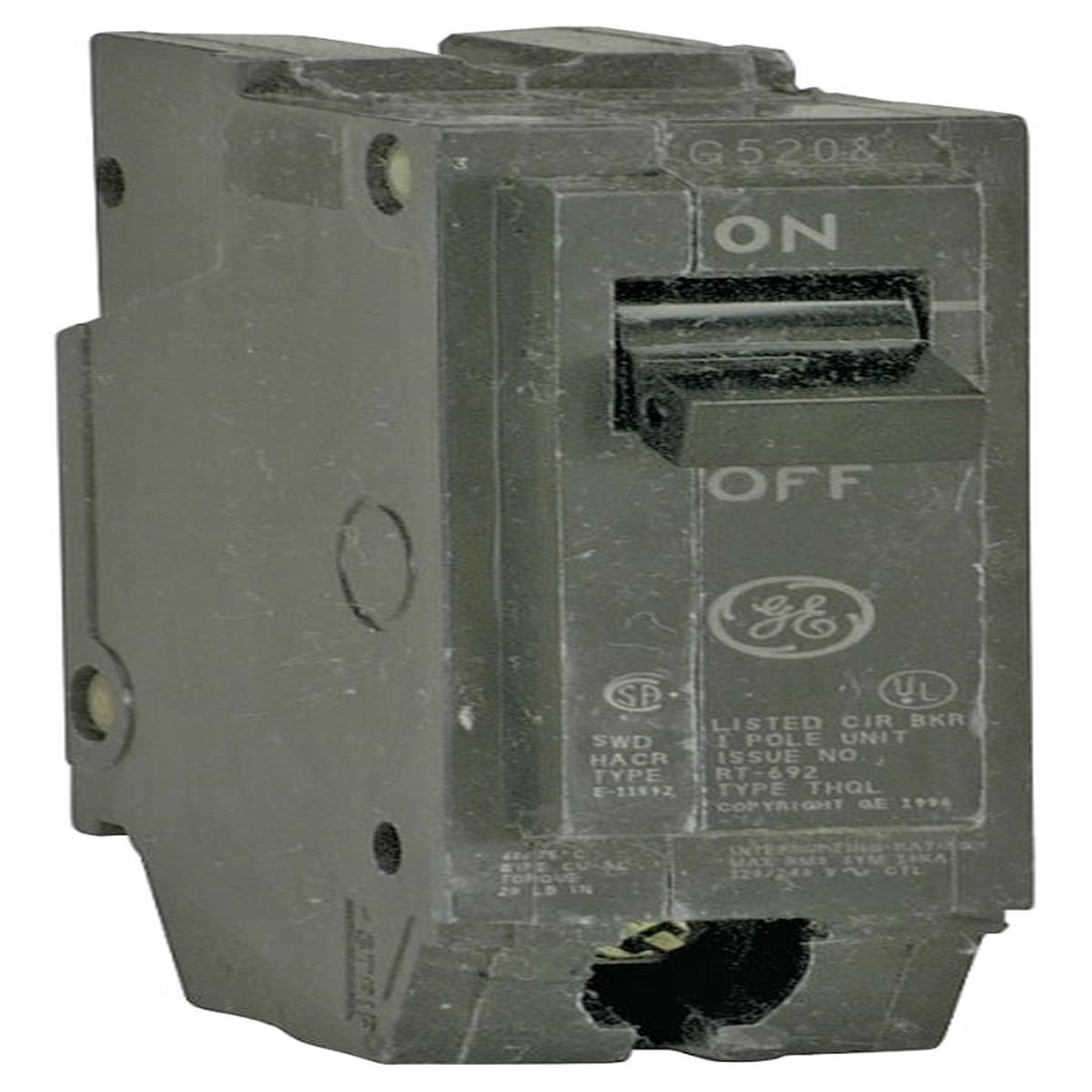

Name: GE THQL1150 Feeder Circuit Breaker Type THQL 50 A 1-Pole 120240 V Non-Interchangeable Trip Plug
SKU: SHJ53151071
Availability: InStock

home improvement>electrical supplies>rough electrical>circuit breakers & fuses

GE THQL1150 Feeder Circuit Breaker Type THQL 50 A 1-Pole 120240 V Non-Interchangeable Trip Plug

Address: California, United States (US)
Shop Hours: 6:00 - 22:00
Email: <a href="/cdn-cgi/l/email-protection#ddaeb8afabb4beb89db5bcafb9aabcafb8aba9b2b2b1f3beb2b0" style="word-break: break-all;"> <span class="__cf_email__" data-cfemail="f182948387989294b1999083958690839487859e9e9ddf929e9c">[email&#160;protected]

SKU:SHJ53151071
Category:home improvement>electrical supplies>rough electrical>circuit breakers & fuses

Free shipping on orders over $40!
Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
Return within 30 days. Duties & taxes non-refundable.

Description
Reviews (0)

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Type THQL 1 in per pole. May be used, when marked to accept, with American Switch, Arrow Hart, Bryant, General Switch, GTE, Sylvania, most ITE, Murray, Westinghouse Type BR, Challenger and Crouse-Hinds. 15 to 30 A 14 to 8 Cu or 12 to 8 Al AWG wire, 35 to 60 A 8 to 3 Cu or 8 to 2 Al AWG wire. UL listed, HACR rated. 1 in module, 120/240 V, 10,000 AIR.Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connectionsCalibration screw is cemented to prevent shiftingBreaker case is made of heat-resistant thermoset for stability and structural integrityTrips to the center position
