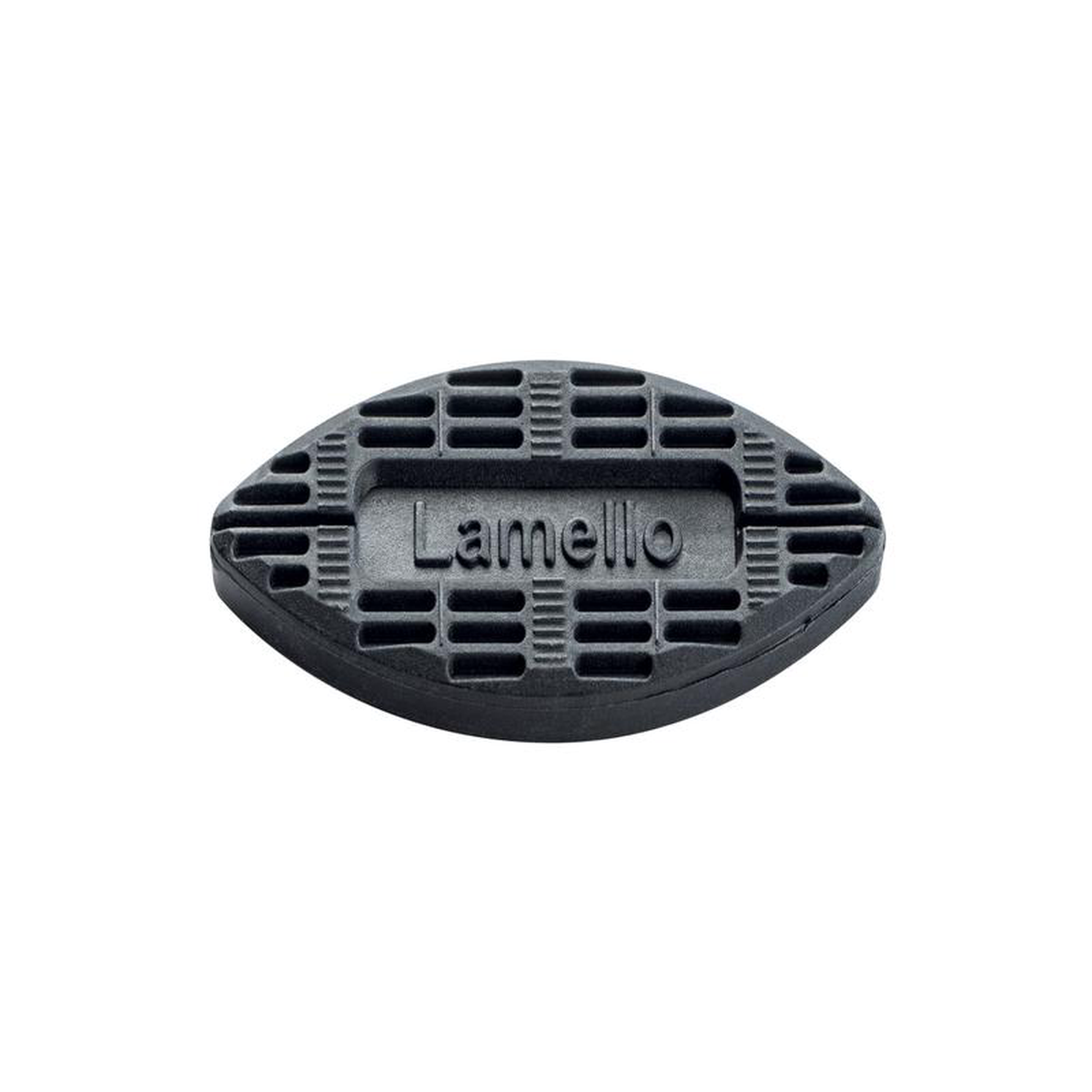

Bisco P

Aligning element, suitable for the P-System groove Bisco P is a plastic biscuit which fits into the 7 mm P-System groove and is held in the groove due to its surface structure. Bisco P is used in combination with Clamex or Tenso as a cost-effective alignment element and ensures flushness of the joint. The Bisco can also be used as a dry joint as a test before the work piece is permanently joined with Tenso P and adhesive. Bisco P-14 is used in combination with Clamex P-14 or Tenso P-14; and Bisco P-10 with the same connectors in size P-10. Key Features Plastic element for Clamex P and Tenso P Align furniture parts flush together with Clamex P Before gluing with Tenso P, check furniture for quality control with Bisco P All angle and miter joints from 22.5 to 180 Bisco P-10 from material thickness 12 mm, Bisco P-14 from 16 mm The Bisco P is a plastic element. The aligning element fits into the 7 mm wide P-System groove. However, it is not anchored with positive locking like the Clamex P, but instead clamps in the groove due to its surface structure. It can be used like a wooden biscuit with PVA glue as a fixed joint. The Bisco P is used in combination with the Clamex P when only every second connector needs to apply clamping force and an aligning element in between is sufficient for joint flushness as an invisible and cost-effective alternative. Another application is the use for test connections before a workpiece is joined with a Tenso P and adhesive. The clamping force of the Tenso P is very powerful and, depending on the angle of the workpieces, disassembly may require a lot of force. It is therefore advisable to check the precision of the machining with a Bisco P. The Biscos are then simply removed from the grooves, replaced by Tenso P, adhesive is then applied and the workpieces are joined together. The Bisco P-14 is used in combination with the Clamex P-14 or Tenso P-14, the Bisco P-10 with connectors of size P-10. Applications: In combination with the Clamex P or Tenso P in furniture construction Applications similar to the Lamello original wooden biscuit Size P10: butt joints from a material thickness of 12 mm, mitre connections from a material thickness of 18 mm Size P14: butt joints from a material thickness of 15 mm, mitre connections from a material thickness of 18 mm Benefits Flush alignment: The generous sliding tolerance allows for perfect flush alignment of workpieces Alternating application: Combination with Clamex or Tenso. Ideal for dry joints before glueing to ensure that the groove fits. Versatile: The minimal element depth allows for mitres of 22.5 180 as well as surface and corner joints and divisions Lateral tolerance: Perfect, flush alignment of both workpieces Low cutting depth: Minimal cutting depth with maximum tensile strength Specifications Min material thickness (edge) 12.0 mm Min workpiece width 75.0 mm Invisible joint Yes Country of Origin Switzerland HS Code 39269000
